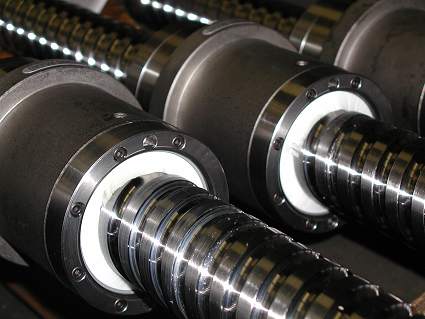

High-tech ball screw
High-tech ball screws
Our ball screw for the highest demands
Our constant development in the field of ball screws covers all levels. Optimizing the production process is just as important to us as optimizing the raceway profile and ball return. Quality assurance and service are a matter of course for us.
Our latest generation of ball screws are technically sophisticated products that have been tested in endurance tests under practical conditions. Our ball screws have been continuously subjected to long-term tests on a complex testing machine specially designed for this purpose. See for yourself and arrange a viewing appointment with us. Here are the results of an endurance test:
| Nominal diameter: | 50 mm |
| Gradient: | 25 mm |
| Ball diameter: | 8 mm |
| Speed: | 3,000 U/min |
| Feed rate: | 75 m/min |
| Acceleration: | 8 m/s² |
| Accelerated mass: | 1.600 kg |
| Achieved service life: | > 1,000 x 106 hours |
High-tech profile
In our new generation of ball screws, the usual pointed arch profile has been replaced by a special profile of the ground ball raceways. This has resulted in a 100% improvement in the load-bearing ratio as well as an extreme improvement in rigidity and thermodynamic behavior.
In our new generation of ball screws, the usual pointed arch profile has been replaced by a special profile of the ground ball raceways. This has resulted in a 100% improvement in the load-bearing ratio as well as an extreme improvement in rigidity and thermodynamic behavior.
High-tech ball return
While our standard ball screws are equipped with the tried and tested individual deflection from gear to gear, our high-speed ball screws are equipped with a newly designed overall deflection. With this overall deflection made of absolutely low-noise, wear-resistant material and path-optimized ball deflection, feed speeds of over 100 m/min can be achieved at any time. The length-stable ball chain and the tangential ball deflection enable the entire ball return to run smoothly.
While our standard ball screws are equipped with the tried and tested individual deflection from gear to gear, our high-speed ball screws are equipped with a newly designed overall deflection. With this overall deflection made of absolutely low-noise, wear-resistant material and path-optimized ball deflection, feed speeds of over 100 m/min can be achieved at any time. The length-stable ball chain and the tangential ball deflection enable the entire ball return to run smoothly.
High-tech quality assurance
Our ball screws are subject to strict quality assurance. In addition to contactless, PC-controlled, fully automatic pitch measurement, the production process is accompanied by profile, surface, stiffness, preload and torque measurements. Test reports can be issued on request. Our quality assurance is at the highest level.
Our ball screws are subject to strict quality assurance. In addition to contactless, PC-controlled, fully automatic pitch measurement, the production process is accompanied by profile, surface, stiffness, preload and torque measurements. Test reports can be issued on request. Our quality assurance is at the highest level.
High-tech service
Our ball screws are high-quality products. Our competent team will advise you based on over 65 years of experience. Our well-organized production process therefore naturally also enables you to offer express production, i.e. a 24-hour service for standard ball screws and many special ball screws.
Our ball screws are high-quality products. Our competent team will advise you based on over 65 years of experience. Our well-organized production process therefore naturally also enables you to offer express production, i.e. a 24-hour service for standard ball screws and many special ball screws.
